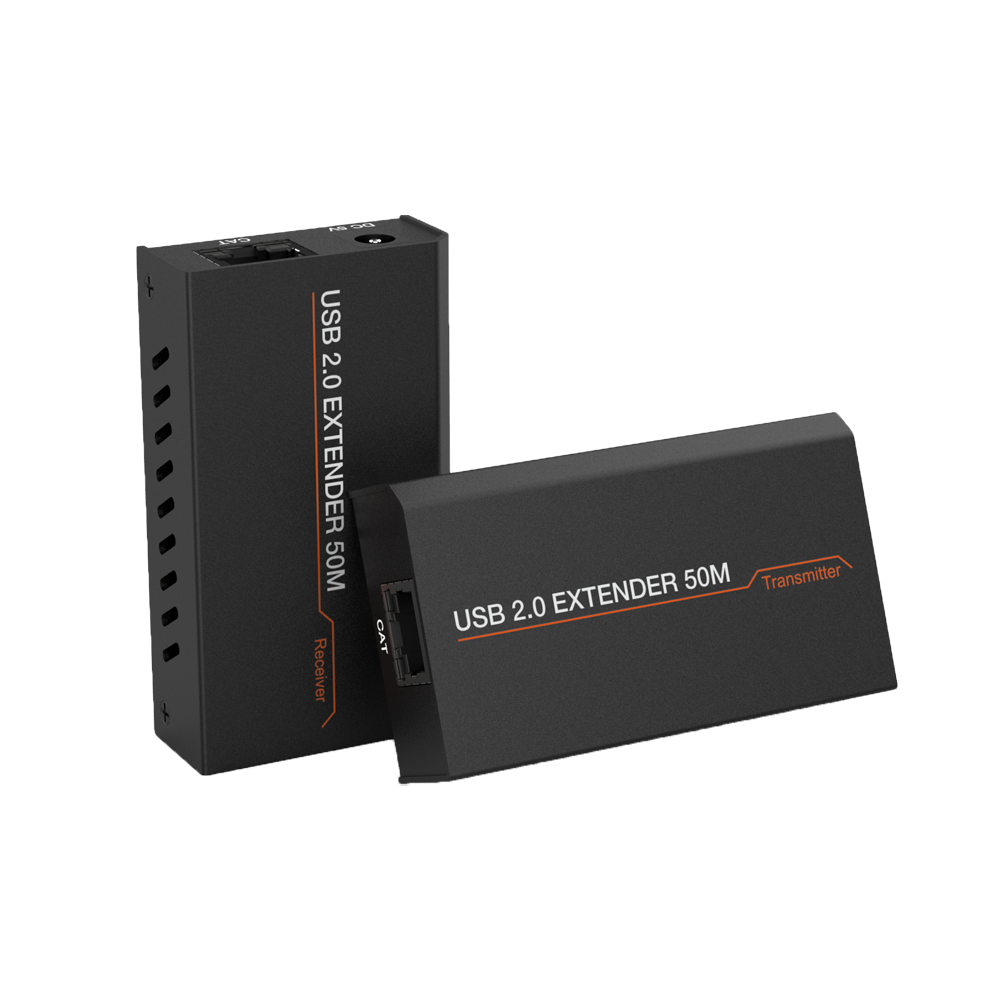

The USB 2.0 Extender can extend USB signal up to 50 meters / 164ft via
Cat 5e/6 cable (The transmission distance can only up to 40 meters / 131.2ft
for some USB 2.0 Hub ). In transmitter, the USB-B port is connected a PC.
In receiver, you can connect a device with USB port at the two USB ports
such as U disk or printer, etc. In addition, you need to connect 5V/1A power
supply to receiver. The product can be widely used long distance signal
transmission between a PC and USB device. Simple plug and play, no drive
and setting installation required.
Supports USB 2.0 protocol, transmission rate up to 480Mbps
Supports extend distance up to 50 meters /164ft via CAT 5e/6 cable (Note: The transmission distance can only up to 40 meters / 131.2ft for some USB 2.0 Hub)
Supports one USB-B port input in transmitter
Supports two USB 2.0 ports output in receiver
Receiver is powered supply by connecting 5V/1A power adapter
Simple plug and play, no drive and setting installation required
Compact design for easy and flexible installation
1× USB 2.0 Extender (Transmitter)
• 1× USB 2.0 Extender (Receiver)
• 1× USB cable (USB-B male head to USB-A male head, one meter )
• 1× 5V/1A Power Adapter
• 1× User Manual
